In the past year or so I’ve been working on a new project. Aurora is a set of libraries for building Compose Desktop apps, taking most of the building blocks from Radiance. I don’t have a firm date yet for when the first release of Aurora will be available, but in the meanwhile I want to talk about something I’ve been playing with over the last few weeks.

Skia is a library that serves as the graphics engine for Chrome, Android, Flutter, Firefox and many other popular platforms. It has also been chosen by Jetbrains as the graphics engine for Compose Desktop. One of the more interesting parts of Skia is SkSL – Skia’s shading language – that allows writing fast and powerful fragment shaders. While shaders are usually associated with rendering complex scenes in video games and CGI effects, in this post I’m going to show how I’m using Skia shaders to render textured backgrounds for desktop apps.

First, let’s start with a few screenshots:

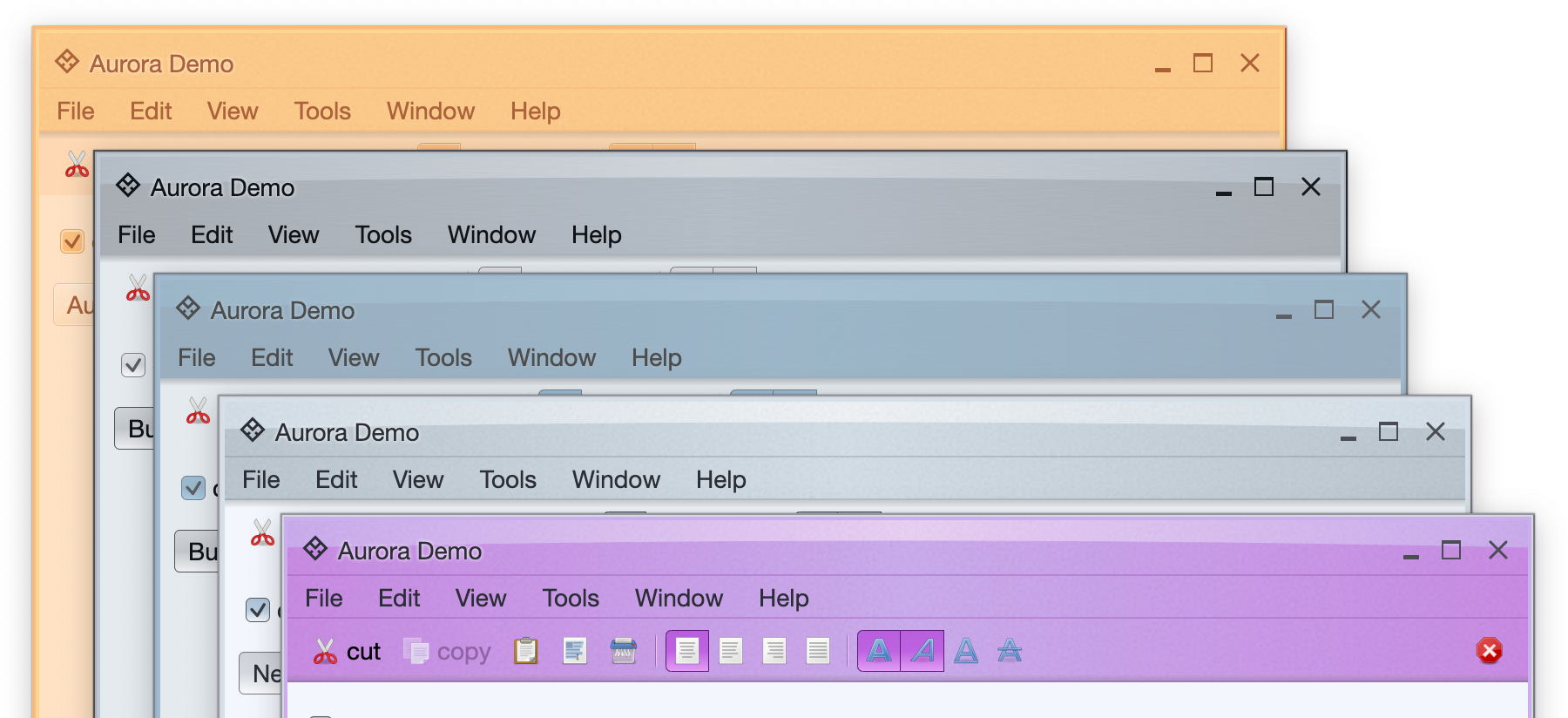

Here we see the top part of a sample demo frame under five different Aurora skins (from top to bottom, Autumn, Business, Business Blue Steel, Nebula, Nebula Amethyst). Autumn features a flat color fill, while other four have a horizontal gradient (darker at the edges, lighter in the middle) overlaid with an curved arc along the top edge. If you look closer, all five also feature something else – a muted texture that spans the whole colored area.

Let’s take a look at another screenshot:

Top row shows a Perlin noise texture, one in greyscale and one in orange. Bottom row shows a brushed metal texture, one in greyscale and one in orange.

Let’s take a look at how to create these textures with Skia shaders in Compose Desktop.

First, we start with Shader.makeFractalNoise that wraps SkPerlinNoiseShader::MakeFractalNoise:

// Fractal noise shader
val noiseShader = Shader.makeFractalNoise(
    baseFrequencyX = baseFrequency,
    baseFrequencyY = baseFrequency,
    numOctaves = 1,
    seed = 0.0f,
    tiles = emptyArray()
)

Next, we have a custom duotone SkSL shader that computes luma (brightness) of each pixel, and uses that luma to map the original color to a point between two given colors (light and dark):

// Duotone shader
val duotoneDesc = """
  uniform shader shaderInput;
  uniform vec4 colorLight;
  uniform vec4 colorDark;
  uniform float alpha;

  half4 main(vec2 fragcoord) {
    vec4 inputColor = shaderInput.eval(fragcoord);
    float luma = dot(inputColor.rgb, vec3(0.299, 0.587, 0.114));
    vec4 duotone = mix(colorLight, colorDark, luma);
    return vec4(duotone.r * alpha, duotone.g * alpha, duotone.b * alpha, alpha);
  }
"""

This shader gets four inputs. The first is another shader (which will be the fractal noise that we’ve created earlier). The next two are two colors, and the last one is alpha (for applying partial translucency).

Now we create a byte buffer to pass our colors and alpha to this shader:

val duotoneDataBuffer = ByteBuffer.allocate(36).order(ByteOrder.LITTLE_ENDIAN)
// RGBA colorLight
duotoneDataBuffer.putFloat(0, colorLight.red)
duotoneDataBuffer.putFloat(4, colorLight.green)
duotoneDataBuffer.putFloat(8, colorLight.blue)
duotoneDataBuffer.putFloat(12, colorLight.alpha)
// RGBA colorDark
duotoneDataBuffer.putFloat(16, colorDark.red)
duotoneDataBuffer.putFloat(20, colorDark.green)
duotoneDataBuffer.putFloat(24, colorDark.blue)
duotoneDataBuffer.putFloat(28, colorDark.alpha)
// Alpha
duotoneDataBuffer.putFloat(32, alpha)

And create our duotone shader with RuntimeEffect.makeForShader (a wrapper for SkRuntimeEffect::MakeForShader) and RuntimeEffect.makeShader (a wrapper for SkRuntimeEffect::makeShader):

val duotoneEffect = RuntimeEffect.makeForShader(duotoneDesc)
val duotoneShader = duotoneEffect.makeShader(
    uniforms = Data.makeFromBytes(duotoneDataBuffer.array()),
    children = arrayOf(noiseShader),
    localMatrix = null,
    isOpaque = false
)

With this shader, we have two options to fill the background of a Compose element. The first one is to wrap Skia’s shader in Compose’s ShaderBrush and use drawBehind modifier:

val brush = ShaderBrush(duotoneShader)
Box(modifier = Modifier.fillMaxSize().drawBehind {
    drawRect(
      brush = brush, topLeft = Offset(100f, 65f), size = Size(400f, 400f)
    )
})

The second option is to create a local Painter object, use DrawScope.drawIntoCanvas block in the overriden DrawScope.onDraw, get the native canvas with Canvas.nativeCanvas and call drawPaint on the native (Skia) canvas directly with the Skia shader we created:

val shaderPaint = Paint()
shaderPaint.setShader(duotoneShader)

Box(modifier = Modifier.fillMaxSize().paint(painter = object : Painter() {
  override val intrinsicSize: Size
    get() = Size.Unspecified

  override fun DrawScope.onDraw() {
    this.drawIntoCanvas {
      val nativeCanvas = it.nativeCanvas
      nativeCanvas.translate(100f, 65f)
      nativeCanvas.clipRect(Rect.makeWH(400f, 400f))
      nativeCanvas.drawPaint(shaderPaint)
    }
  }
}))

What about the brushed metal texture? In Aurora it is generated by applying modulated sine / cosine waves on top of the Perlin noise shader. The relevant snippet is:

// Brushed metal shader
val brushedMetalDesc = """
        uniform shader shaderInput;

        half4 main(vec2 fragcoord) {
          vec4 inputColor = shaderInput.eval(vec2(0, fragcoord.y));
          // Compute the luma at the first pixel in this row
          float luma = dot(inputColor.rgb, vec3(0.299, 0.587, 0.114));
          // Apply modulation to stretch and shift the texture for the brushed metal look
          float modulated = abs(cos((0.004 + 0.02 * luma) * (fragcoord.x + 200) + 0.26 * luma)
              * sin((0.06 - 0.25 * luma) * (fragcoord.x + 85) + 0.75 * luma));
          // Map 0.0-1.0 range to inverse 0.15-0.3
          float modulated2 = 0.3 - modulated / 6.5;
          half4 result = half4(modulated2, modulated2, modulated2, 1.0);
          return result;
        }
"""
val brushedMetalEffect = RuntimeEffect.makeForShader(brushedMetalDesc)
val brushedMetalShader = brushedMetalEffect.makeShader(
    uniforms = null,
    children = arrayOf(noiseShader),
    localMatrix = null,
    isOpaque = false
)

And then passing the blur shader as the input to the duotone shader:

val duotoneEffect = RuntimeEffect.makeForShader(duotoneDesc)
val duotoneShader = duotoneEffect.makeShader(
  uniforms = Data.makeFromBytes(duotoneDataBuffer.array()),
  children = arrayOf(brushedMetalShader),
  localMatrix = null,
  isOpaque = false
)

The full pipeline for generating these two Aurora textured shaders is here, and the rendering of textures is done here.

What if we want our shaders to be dynamic? First let’s see a couple of videos:

The full code for these two demos can be found here and here.

The core setup is the same – use Runtime.makeForShader to compile the SkSL shader snippet, pass parameters with RuntimeEffect.makeShader, and then use either ShaderBrush + drawBehind or Painter + DrawScope.drawIntoCanvas + Canvas.nativeCanvas + Canvas.drawPaint. The additional setup involved is around dynamically changing one or more shader attributes based on time (and maybe other parameters) and using built-in Compose reactive flow to update the pixels in real time.

First, we set up our variables:

val runtimeEffect = RuntimeEffect.makeForShader(sksl)
val shaderPaint = remember { Paint() }
val byteBuffer = remember { ByteBuffer.allocate(4).order(ByteOrder.LITTLE_ENDIAN) }
var timeUniform by remember { mutableStateOf(0.0f) }
var previousNanos by remember { mutableStateOf(0L) }

Then we update our shader with the time-based parameter:

val timeBits = byteBuffer.clear().putFloat(timeUniform).array()
val shader = runtimeEffect.makeShader(
    uniforms = Data.makeFromBytes(timeBits),
    children = null,
    localMatrix = null,
    isOpaque = false
)
shaderPaint.setShader(shader)

Then we have our draw logic

val brush = ShaderBrush(shader)

Box(modifier = Modifier.fillMaxSize().drawBehind {
    drawRect(
        brush = brush, topLeft = Offset(100f, 65f), size = Size(400f, 400f)
    )
})

And finally, a Compose effect that syncs our updates with the clock and updates the time-based parameter:

LaunchedEffect(null) {
    while (true) {
        withFrameNanos { frameTimeNanos ->
            val nanosPassed = frameTimeNanos - previousNanos
            val delta = nanosPassed / 100000000f
            if (previousNanos > 0.0f) {
                timeUniform -= delta
            }
            previousNanos = frameTimeNanos
        }
    }
}

Now, on every clock frame we update the timeUniform variable, and then pass that newly updated value into the shader. Compose detects that a variable used in our top-level composable has changed, recomposes it and redraws the content – essentially asking our shader to redraw the relevant area based on the new value.

Stay tuned for more news on Aurora as it is getting closer to its first official release!

Notes:

1. Multiple texture reads are expensive, and you might want to force such paths to draw the texture to an SkSurface and read its pixels from an SkImage.
2. If your shader does not need to create an exact, pixel-perfect replica of the target visuals, consider sacrificing some of the finer visual details for performance. For example, a large horizontal blur that reads 20 pixels on each “side” as part of the convolution (41 reads for every pixel) can be replaced by double or triple invocation of a smaller convolution matrix, or downscaling the original image, applying a smaller blur and upscaling the result.
3. Performance is important as your shader (or shader chain) runs on every pixel. It can be a high-resolution display (lots of pixels to process), a low-end GPU, a CPU-bound pipeline (no GPU), or any combination thereof.
